SKF S7020 ACE/HCP4A, süper hassasiyetli eğik bilyalı rulmanlar kategorisinde üstün performans sunar. 100mm iç çap, 150mm dış çap, 24mm genişlik ölçülerindeki bu ürün, orijinal SKF kalitesiyle sanayi standartlarını karşılar.

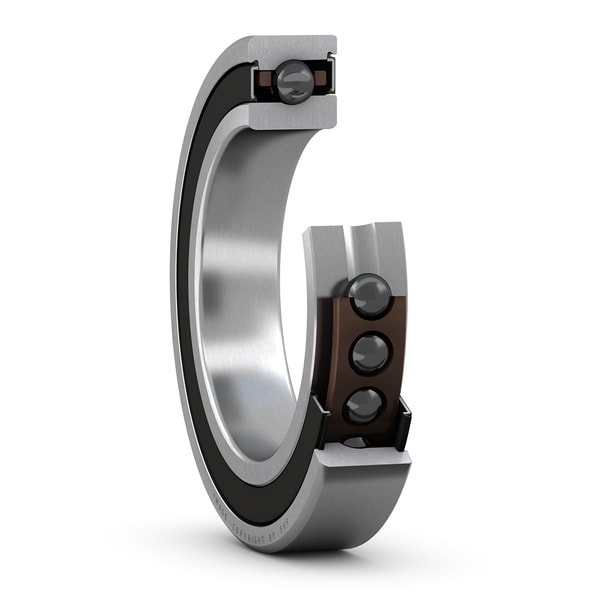

These super-precision, high-speed E design, single row angular contact ball bearings, with 25° contact angle, with seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate very high speeds. Compared to the equivalent SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads.
Özellikler ve Faydalar
- ✔ Very high running accuracy
- ✔ Accommodate very high speeds
- ✔ Accommodate relatively high radial loads and large unilateral axial loads
- ✔ Non-contact seals
- ✔ Integral sealing prolongs bearing service life
Teknik Veriler
| Marka | SKF |
|---|---|
| Model | S7020 ACE/HCP4A |
| Delik Çapı (d) | 100.0000 mm |
| Dış Çap (D) | 150.0000 mm |
| Genişlik (B) | 24.0000 mm |
| Dinamik Yük (C) | 42.3000 kN |
| Statik Yük (C0) | 38.0000 kN |
| Yorulma Yük Limiti (Pu) | 1.0400 kN |
| Ağırlık | 1.1300 kg |
