ZKLF50140-2Z-XL Teknik Özellikleri

Orijinal Schaeffler (FAG/INA) üretimi ZKLF50140-2Z-XL kodlu Axial Eğik Bilyalı Rulman, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

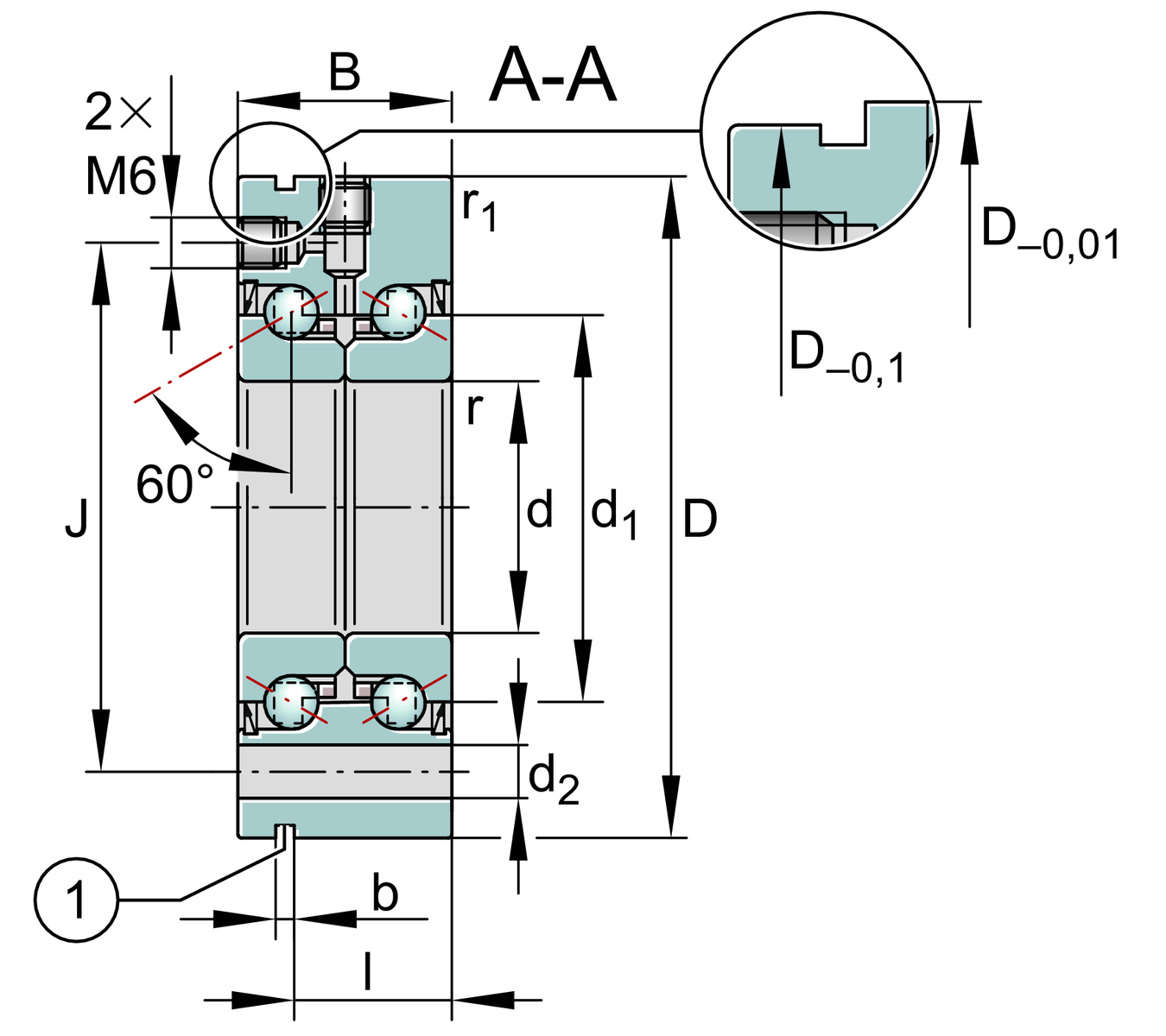

ZKLF50140-2Z-XL Axial Eğik Bilyalı Rulman Teknik Özellikleri Tablosu Özellik Değer Ağırlık 4.404 kg Axial runout 2.5 µm Dinamik Yük Sayısı (Eksenel) (C) 125000 N Statik Yük Sayısı (Eksenel) (C) 250000 N Bearing frictional torque (M) 1.3 Nm İç Çap (d) 50 mm Bore diameter lower tolerance -0.005 mm Bore diameter upper tolerance 0 mm Connection thread for lubrication M6 Contact angle (a) 60 ° Distance of extraction slot (I) 45 mm Fatigue load limit, axial (C) 15200 N Fixing holes diameter (d) 11 mm Limiting speed for grease lubrication (n) 3500 1/min Mass moment of inertia (M) 15.2 kg*cm2 Maximum diameter of housing (D) 98 mm Minimum Pah Boyutu (r) 0.6 mm Minimum Pah Boyutu (r) 0.6 mm Minimum diameter shaft (d) 63 mm Number of holes in adjacent construction (n) 12 Dış Çap (D) 140 mm Outside diameter lower tolerance -0.01 mm Outside diameter upper tolerance 0 mm Pitch circle diameter fixing holes (J) 113 mm Pitch quantity of fixing holes (n) 12 Pitch separation angle of holes in adjacent construction (t) 30 ° Pitch separation angle of fixing holes (t) 30 ° Position tolerance of bore in the housing (t) 0.2 mm Recommended INA precision locknut for axial locking AM50 Recommended INA precision locknut for radial locking ZMA50/75 Required locknut force axial 28451 N İç Bilezik Fatura Çapı (d) 80 mm Rigidity axial (c) 1400 N/µm Size of fixing screws M10 Maksimum Çalışma Sıcaklığı (T) 120 °C Minimum Çalışma Sıcaklığı (T) -30 °C Thermally safe operating speed (n) 2500 1/min Tightening torque for the recommended INA precision locknut (M) 150 Nm Tilting rigidity (c) 1500 Nm/mrad Genişlik (B) 54 mm Width lower tolerance -0.25 mm Width of extraction slot (b) 3 mm Width upper tolerance 0 mm
