YRTC100-XL Teknik Özellikleri

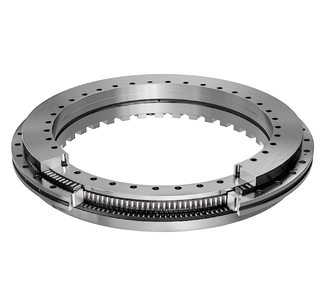

Orijinal Schaeffler (FAG/INA) üretimi YRTC100-XL kodlu Axial/radial roller beaBilezik, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

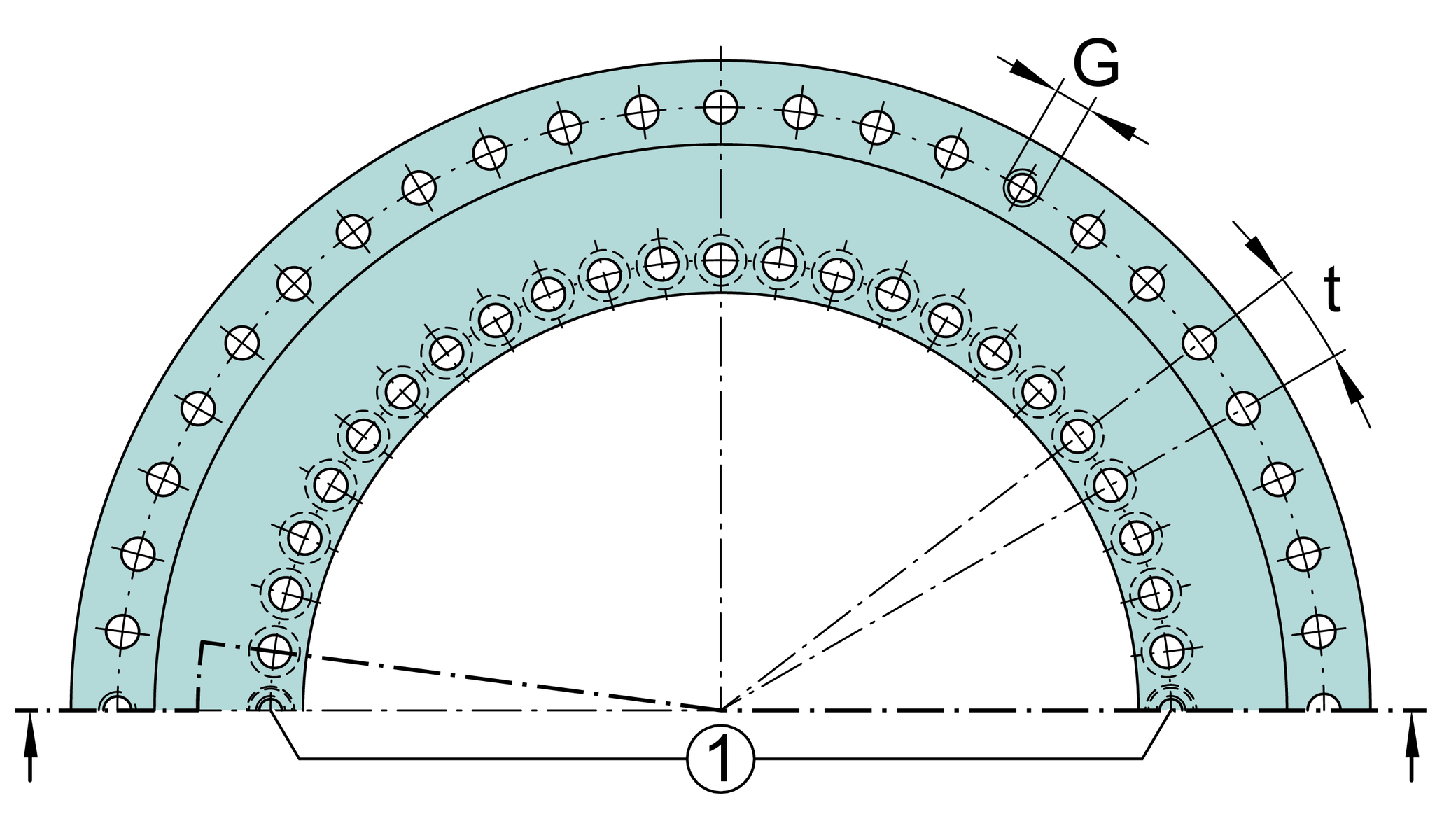

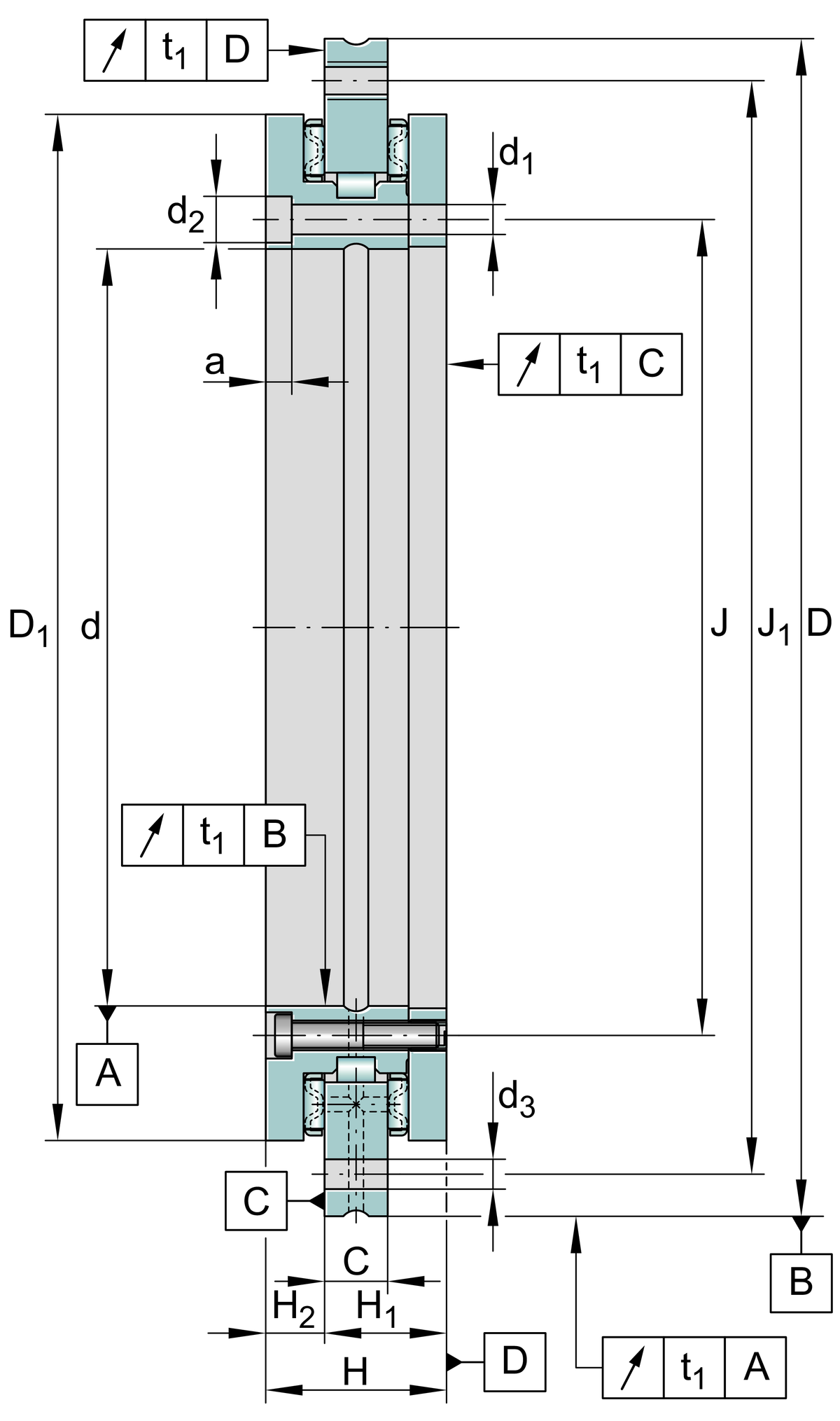

YRTC100-XL Axial/radial roller beaBilezik Teknik Özellikleri Tablosu Özellik Değer Ağırlık 3.571 kg Axial rigidity of rolling element set (c) 8700 N/µm Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. (t) 3 µm Axial rigidity of bearing position (c) 5300 N/µm Dinamik Yük Sayısı (Eksenel) (C) 105000 N Dinamik Yük Sayısı (Radyal) (C) 49500 N Statik Yük Sayısı (Radyal) (C) 88000 N Statik Yük Sayısı (Eksenel) (C) 455000 N Bearing friction torque at 5 1/min (M) 2.5 Nm İç Çap (d) 100 mm Bore diameter lower tolerance -0.01 mm Bore diameter upper tolerance 0 mm Counterbore depth of fixing holes (a) 5.4 mm Counterbore diameter of fixing holes (d) 10 mm Fixing holes diameter inner ring (d) 5.6 mm Fixing holes diameter outer ring (d) 5.6 mm Height contact face outerring H1 lower tolerance -0.025 mm Height contact face outer ring (H) 25 mm Height contact face outerring H1 upper tolerance 0.025 mm Height contact face outerring H2 lower tolerance -0.02 mm Height contact face outer ring (H) 13 mm Height contact face outerring H2 upper tolerance 0.02 mm Yükseklik (H) 38 mm Limit Hız (n) 1200 1/min Maximum diameter inner ring (D) 161 mm Dış Çap (D) 185 mm Outside diameter lower tolerance -0.015 mm Outside diameter upper tolerance 0 mm Pitch quantity (n) 18 Pitch separation angle (t) 20 ° Pitch circle diameter fixing holes in inner ring (J) 112 mm Pitch circle diameter fixing holes in outer ring (J) 170 mm Quantity of fixing holes inner ring 16 Quantity of fixing holes outer ring 15 Quantity of retaining screws 2 Quantity of threaded extraction hole 3 Radial rigidity of rolling element set (c) 5200 N/µm Radial rigidity of bearing position (c) 3150 N/µm Screw tightening torque (M) 8.5 Nm Maksimum Çalışma Sıcaklığı (T) 120 °C Minimum Çalışma Sıcaklığı (T) -30 °C Threaded extraction hole (G) M5 Tilting rigidity of rolling element set (c) 23500 Nm/mrad Tilting rigidity of bearing position (c) 12200 Nm/mrad Width of outer ring (C) 12 mm
