Açıklama

XSU140544 Teknik Özellikleri

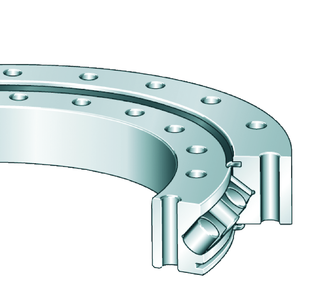

Orijinal Schaeffler (FAG/INA) üretimi XSU140544 kodlu Slewing Bilezik, Crossed roller beaBilezik, without gear teeth, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

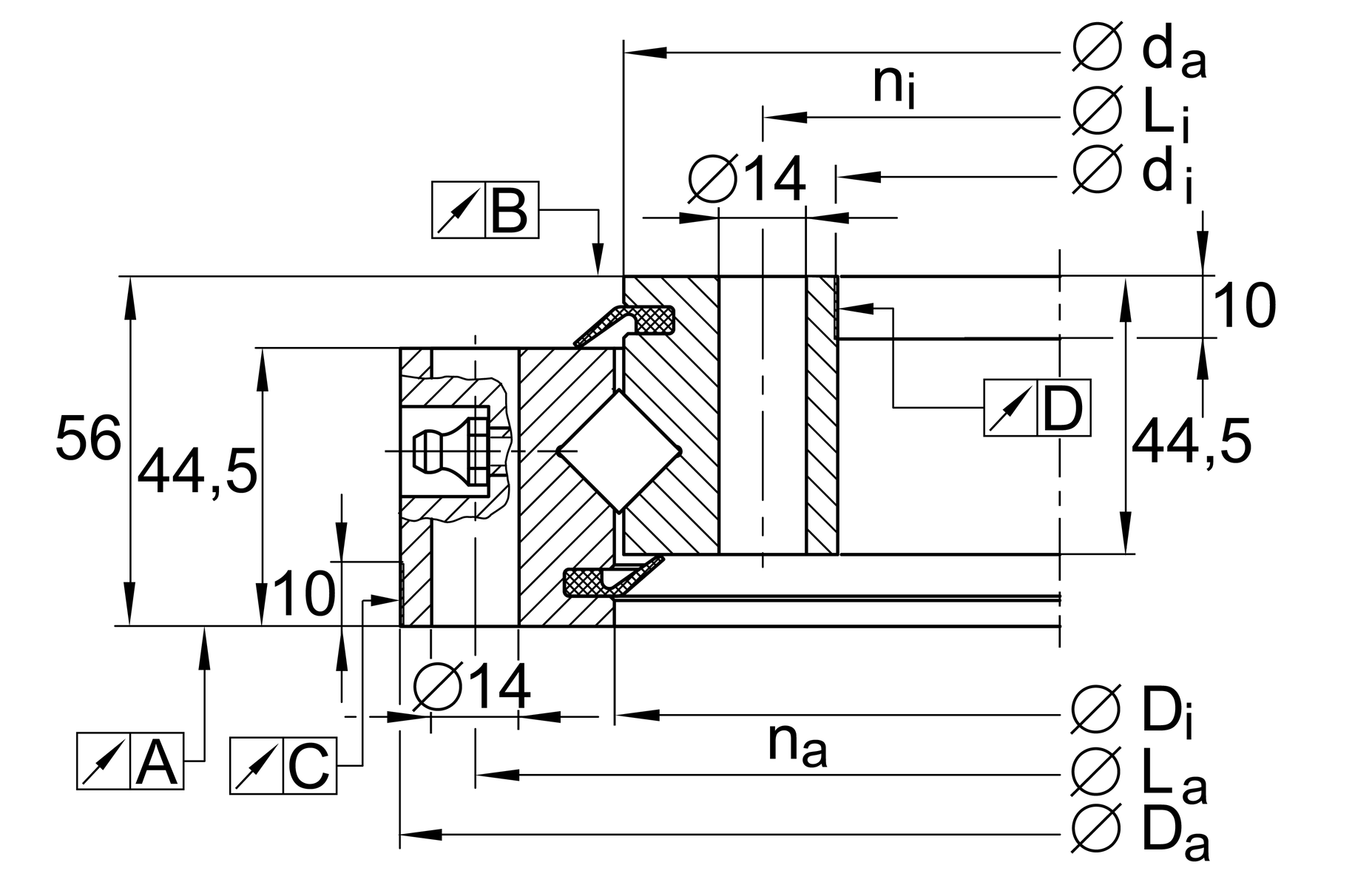

XSU140544 Slewing Bilezik, Crossed roller beaBilezik, without gear teeth Teknik Özellikleri Tablosu Özellik Değer Ağırlık 36.1 kg Dinamik Yük Sayısı (Eksenel) (C) 231000 N Dinamik Yük Sayısı (Radyal) (C) 164000 N Statik Yük Sayısı (Radyal) (C) 345000 N Statik Yük Sayısı (Eksenel) (C) 700000 N Inner diameter outer ring (D) 545 mm Diameter centring outer ring (D) 614 mm Diameter centring outer ring tolerance -IT7 Diameter centring inner ring (d) 474 mm Diameter centring inner ring tolerance IT7 Fixing bore (d) 14 mm Yükseklik (H) 56 mm Height of individual ring (h) 44.5 mm Inner diameter outer ring lower tolerance 0 mm Inner diameter outer ring upper tolerance 0.5 mm Length centering inner ring (t) 10 mm Length centering outer ring (T) 10 mm Limit Hız (n) 70 1/min Maximum bearing preload (VSP) 0.03 mm Max. radial load fixing screws (friction locking) (F) 132200 N Min. bearing preload (VSP) 0.01 mm Outside diameter inner ring (d) 543 mm Outside diameter inner ring lower tolerance -0.5 mm Outside diameter inner ring upper tolerance 0 mm Pitchcircle diameter fixing holes inner ring (L) 498 mm Pitchcircle diameter fixing holes outer ring (L) 590 mm Number of fixing holes in inner ring (n) 32 Number of fixing holes in outer ring (n) 32 Running accuracy A (related to the raceway) 0.04 mm Running accuracy B (related to the raceway) 0.04 mm Running accuracy C (related to the raceway) 0.07 mm Running accuracy D (related to the raceway) 0.06 mm Maksimum Çalışma Sıcaklığı (T) 80 °C Minimum Çalışma Sıcaklığı (T) -30 °C Height outer ring (h) 44.5 mm
