Orijinal Schaeffler FAG/INA ürünü. XSI140414-N Slewing Bilezik, crossed roller beaBilezik, internal gear teeth. Endüstriyel kalite, hassas ölçüler.

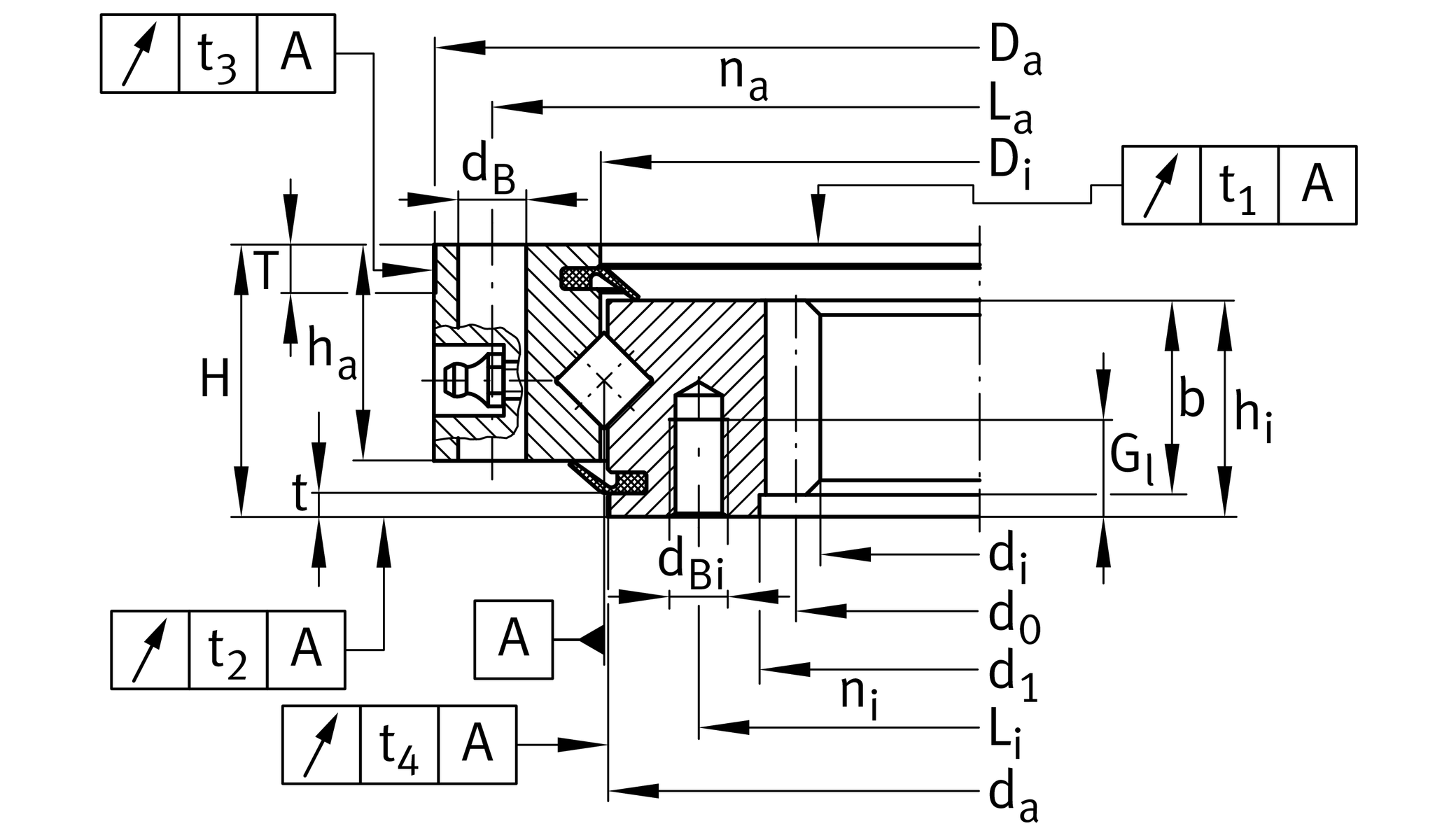

Orijinal Schaeffler (FAG/INA) üretimi XSI140414-N kodlu Slewing Bilezik, crossed roller beaBilezik, internal gear teeth, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.
 |
|
| Ağırlık | 31.051 kg |
|---|---|
| Ağırlık | 31.051 kg |
| Diameter turning inner ring lower tolerance | 0 mm |
| Dinamik Yük Sayısı (Radyal) (C) | 143000 N |
| Statik Yük Sayısı (Radyal) (C) | 265000 N |
| Statik Yük Sayısı (Eksenel) (C) | 540000 N |
| Bore Diameter (d) | 325 mm |
| Inner diameter outer ring (D) | 415 mm |
| Centring diameter outer ring (D) | 484 mm |
| Diameter centring outer ring tolerance | -IT7 |
| Diameter centring inner ring (d) | 411 mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) (F) | 26200 N |
| Dinamik Yük Sayısı (Eksenel) (C) | 200000 N |
| Diameter recess turning inner ring (d) | 350 mm |
| Diameter turning inner ring upper tolerance | 0.5 mm |
| Fixing bore (d) | 14 mm |
| Yükseklik (H) | 56 mm |
| Inner diameter outer ring lower tolerance | 0 mm |
| Inner diameter outer ring upper tolerance | 0.5 mm |
| Length centering inner ring (t) | 4.5 mm |
| Length centering outer ring (T) | 10 mm |
| Diameter centring inner ring tolerance | -IT7 |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) (F) | 17700 N |
| Running accuracy A (related to the raceway) | 0.04 mm |
| Running accuracy B (related to the raceway) | 0.04 mm |
| Min. bearing preload (VSP) | 0.01 mm |
| Modul of gearing (m) | 5 mm |
| Number of teeth (z) | 67 |
| Pitch circle diameter gearing (d) | 335 mm |
| Pitchcircle diameter fixing holes inner ring (L) | 375 mm |
| Pitchcircle diameter fixing holes outer ring (L) | 460 mm |
| Number of fixing holes in inner ring (n) | 24 |
| Number of fixing holes in outer ring (n) | 24 |
| Maximum bearing preload (VSP) | 0.03 mm |
| Max. radial load fixing screws (friction locking) (F) | 99100 N |
| Running accuracy C (related to the raceway) | 0.06 mm |
| Running accuracy D (related to the raceway) | 0.06 mm |
| Maksimum Çalışma Sıcaklığı (T) | 80 °C |
| Minimum Çalışma Sıcaklığı (T) | -25 °C |
| Thread depth oil connector (t) | 20 mm |
| Tread fixing bore | M12 |
| Width gearing (b) | 40 mm |
| Height outer ring (h) | 44.5 mm |
| Genişlik | 44.5 mm |
