XSA140544-N Teknik Özellikleri

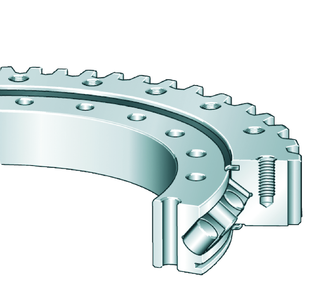

Orijinal Schaeffler (FAG/INA) üretimi XSA140544-N kodlu Slewing Bilezik, crossed roller beaBilezik, external gear teeth, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

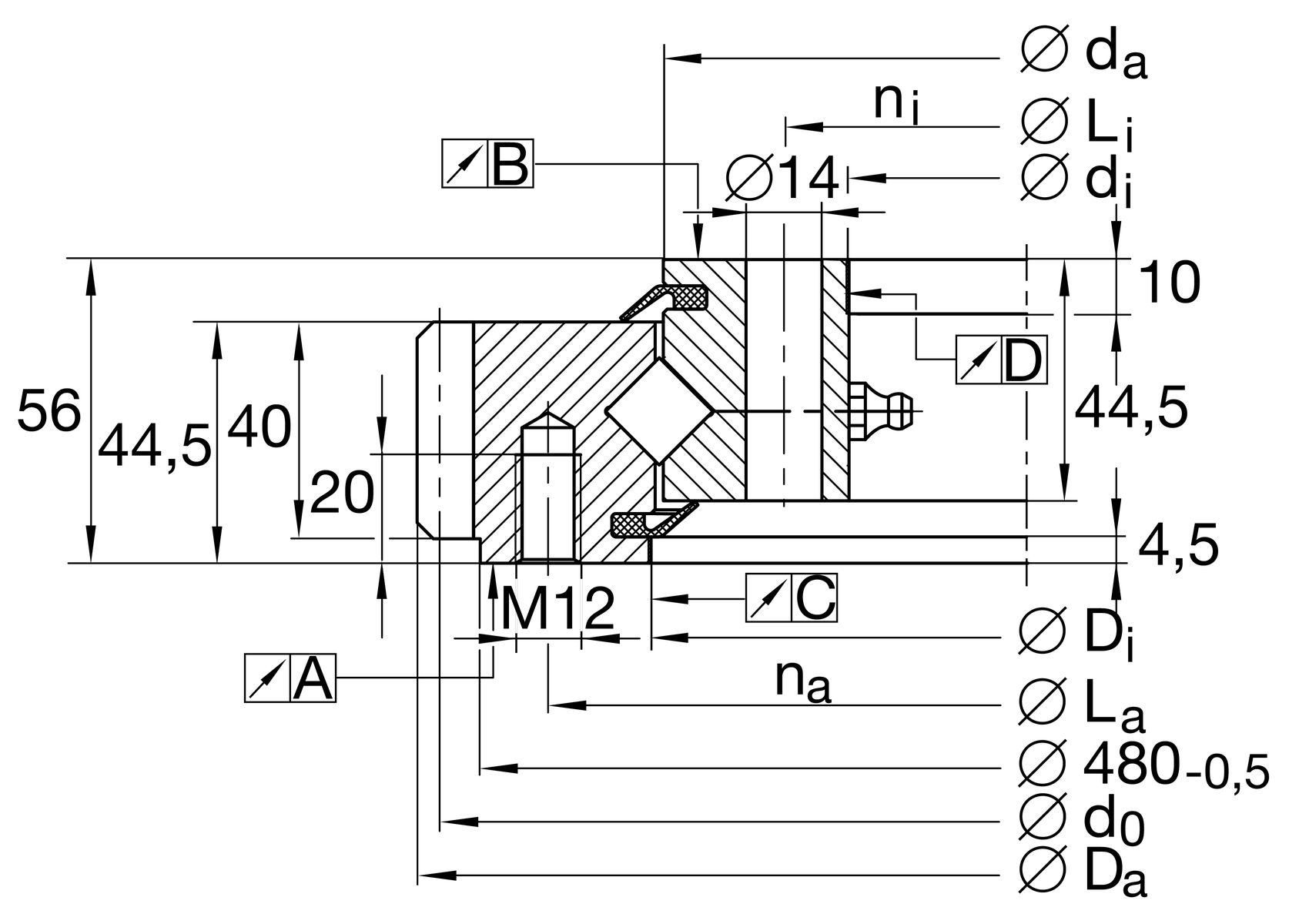

XSA140544-N Slewing Bilezik, crossed roller beaBilezik, external gear teeth Teknik Özellikleri Tablosu Özellik Değer Ağırlık 44.1 kg Dinamik Yük Sayısı (Eksenel) (C) 231000 N Dinamik Yük Sayısı (Radyal) (C) 164000 N Statik Yük Sayısı (Radyal) (C) 345000 N Statik Yük Sayısı (Eksenel) (C) 700000 N Diameter centring outer ring (D) 547 mm Diameter centring outer ring tolerance IT7 Diameter centring inner ring (d) 474 mm Diameter centring inner ring tolerance IT7 Fixing bore (d) 14 mm Yükseklik (H) 56 mm Height of individual ring (h) 44.5 mm Length centering inner ring (t) 10 mm Length centering outer ring (T) 4.5 mm Max. tooth force against tooth fracture (at a shock factor of 1,35) (F) 31500 N Max. tooth force root fatigue strenght (at a shock factor of 1,2) (F) 21300 N Maximum bearing preload (VSP) 0.03 mm Max. radial load fixing screws (friction locking) (F) 115600 N Min. bearing preload (VSP) 0.01 mm Modul of gearing (m) 6 mm Number of teeth (z) 105 Outside diameter inner ring (d) 543 mm Outside diameter inner ring lower tolerance -0.5 mm Outside diameter inner ring upper tolerance 0 mm Outside Diameter (D) 640.3 mm Pitch circle diameter gearing (d) 630 mm Pitchcircle diameter fixing holes inner ring (L) 498 mm Pitchcircle diameter fixing holes outer ring (L) 585 mm Number of fixing holes in inner ring (n) 32 Number of fixing holes in outer ring (n) 28 Running accuracy A (related to the raceway) 0.04 mm Running accuracy B (related to the raceway) 0.04 mm Running accuracy C (related to the raceway) 0.07 mm Running accuracy D (related to the raceway) 0.06 mm Maksimum Çalışma Sıcaklığı (T) 80 °C Minimum Çalışma Sıcaklığı (T) -25 °C Thread depth oil connector (t) 20 mm Tread fixing bore M12 Width gearing (b) 44.5 mm Width outer ring (h) 44.5 mm
