VSI250755-N Teknik Özellikleri

Orijinal Schaeffler (FAG/INA) üretimi VSI250755-N kodlu Slewing Bilezik, 4 point contact beaBilezik, internal gear teeth, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

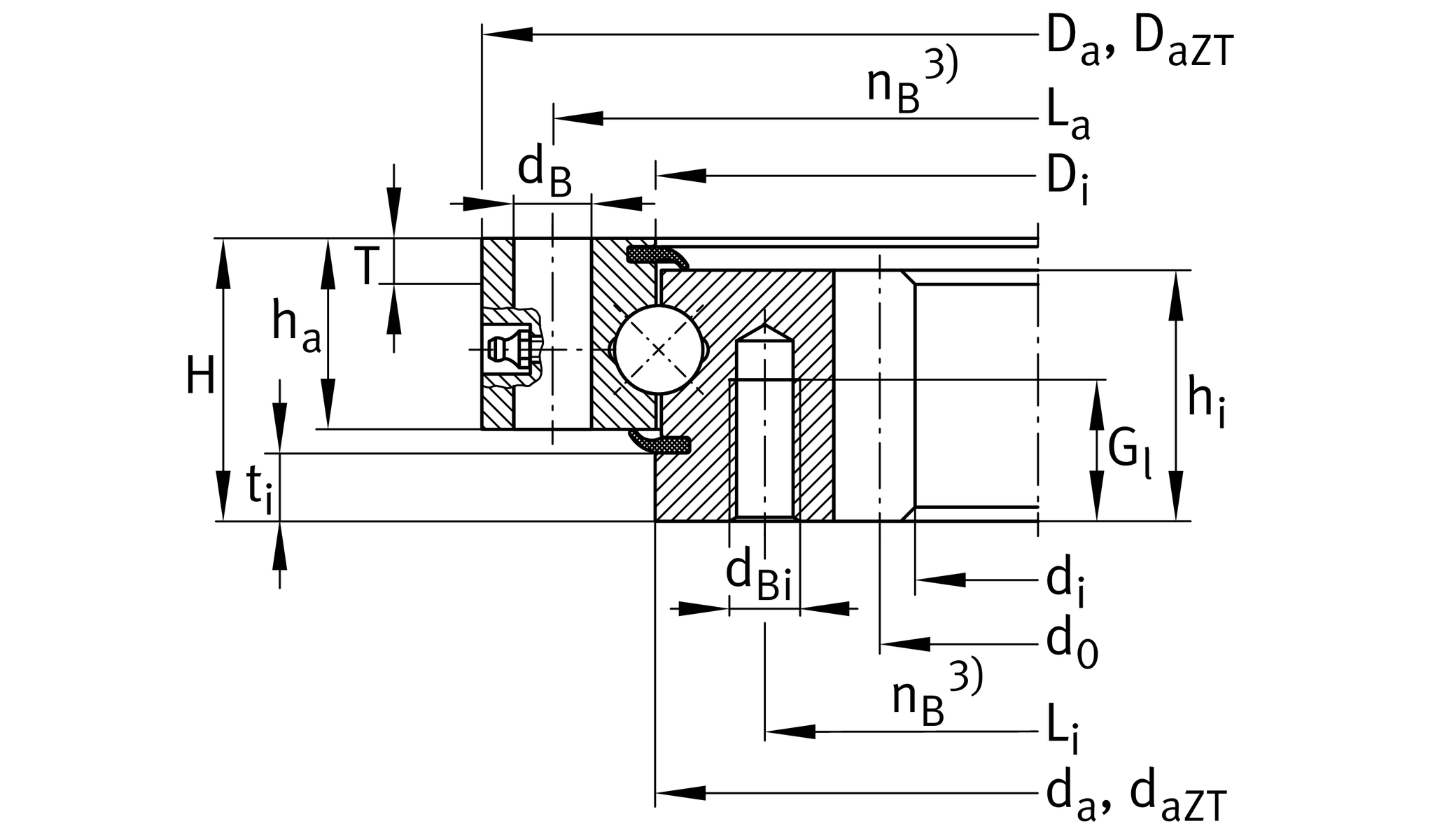

VSI250755-N Slewing Bilezik, 4 point contact beaBilezik, internal gear teeth Teknik Özellikleri Tablosu Özellik Değer Ağırlık 119.0 kg Dinamik Yük Sayısı (Eksenel) (C) 340000 N Dinamik Yük Sayısı (Radyal) (C) 305000 N Statik Yük Sayısı (Radyal) (C) 1230000 N Statik Yük Sayısı (Eksenel) (C) 2700000 N Bore Diameter (d) 610 mm Inner diameter outer ring (D) 753 mm Fixing bore (d) 22 mm Yükseklik (H) 80 mm Length centering inner ring (T) 19 mm Length centering outer ring (T) 15 mm Max. tooth force against tooth fracture (at a shock factor of 1,35) (F) 98900 N Max. tooth force root fatigue strenght (at a shock factor of 1,2) (F) 68000 N Normal axial clearance max. 0.24 mm Normal radial clearance max. 0.13 mm Max. radial load fixing screws (friction locking) (F) 290400 N Normal axial clearance min. 0.05 mm Normal radial clearance min. 0.03 mm Modul of gearing (m) 10 mm Number of teeth (z) 63 Outside diameter inner ring (d) 757 mm Outside Diameter (D) 855 mm Pitch circle diameter gearing (d) 630 mm Pitchcircle diameter fixing holes inner ring (L) 694 mm Pitchcircle diameter fixing holes outer ring (L) 815 mm Number of fixing holes in inner ring (n) 24 Number of fixing holes in outer ring (n) 24 Thread depth oil connector (G) 40 mm Tread fixing bore (d) M20 Height outer ring (h) 54 mm Genişlik (h) 71 mm
