VI140326-V Teknik Özellikleri

Orijinal Schaeffler (FAG/INA) üretimi VI140326-V kodlu Slewing Bilezik, 4 point contact beaBilezik, internal gear teeth, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

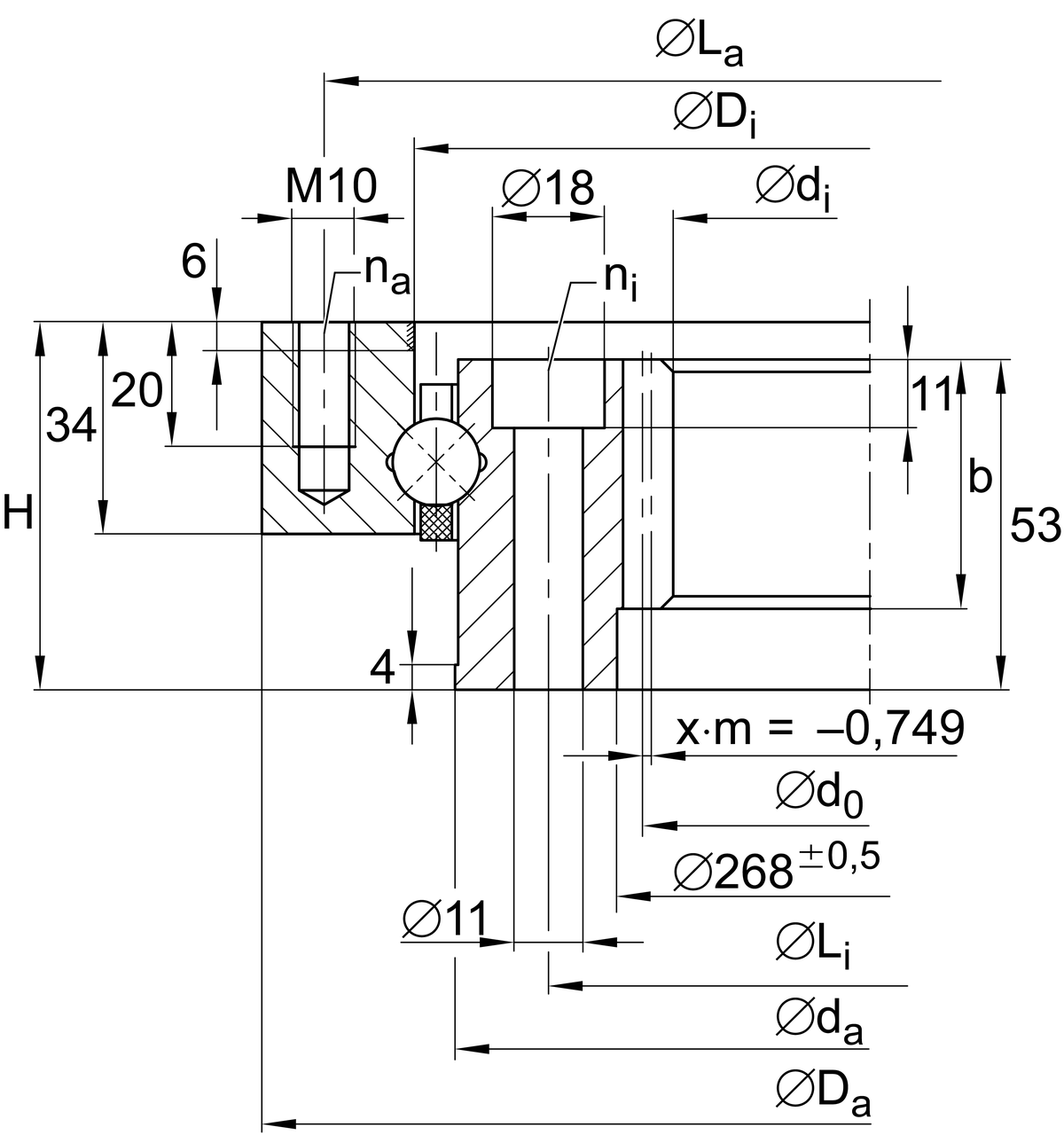

VI140326-V Slewing Bilezik, 4 point contact beaBilezik, internal gear teeth Teknik Özellikleri Tablosu Özellik Değer Ağırlık 18.0 kg Dinamik Yük Sayısı (Eksenel) (C) 82000 N Dinamik Yük Sayısı (Radyal) (C) 74000 N Statik Yük Sayısı (Radyal) (C) 158000 N Statik Yük Sayısı (Eksenel) (C) 395000 N Bore Diameter (d) 250 mm Inner diameter outer ring (D) 333 mm Counterbore depth of fixing holes 11 mm Counterbore diameter of fixing holes 18 mm Diameter centring inner ring (d) 333 mm Diameter turning inner ring lower tolerance -0.5 mm Diameter recess turning inner ring (d) 268 mm Diameter turning inner ring upper tolerance 0.5 mm Fixing bore (d) 11 mm Yükseklik (H) 59 mm Inner diameter outer ring lower tolerance 0 mm Inner diameter outer ring upper tolerance 0.057 mm Length centering inner ring (T) 4 mm Length centering outer ring (T) 6 mm Max. tooth force against tooth fracture (at a shock factor of 1,35) (F) 16100 N Max. tooth force root fatigue strenght (at a shock factor of 1,2) (F) 10800 N Normal axial clearance max. 0.18 mm Normal radial clearance max. 0.08 mm Max. radial load fixing screws (friction locking) (F) 22400 N Normal axial clearance min. 0.08 mm Normal radial clearance min. 0.03 mm Modul of gearing (m) 3.5 mm Number of teeth (z) 73 Outside diameter inner ring (d) 320 mm Outside diameter inner ring lower tolerance 0.004 mm Outside diameter inner ring upper tolerance 0.04 mm Outside Diameter (D) 382 mm Pitch circle diameter gearing (d) 255.5 mm Pitchcircle diameter fixing holes inner ring (L) 290 mm Pitchcircle diameter fixing holes outer ring (L) 362 mm Profile shift -0.749 mm Number of fixing holes in inner ring (n) 8 Number of fixing holes in outer ring (n) 8 Maksimum Çalışma Sıcaklığı (T) 80 °C Minimum Çalışma Sıcaklığı (T) -25 °C Thread depth oil connector (G) 20 mm Tread fixing bore (d) M10 Width gearing (b) 40 mm Height outer ring (h) 34 mm Genişlik (h) 53 mm
