Açıklama

VA160302-N Teknik Özellikleri

Orijinal Schaeffler (FAG/INA) üretimi VA160302-N kodlu Slewing Bilezik, 4 point contact beaBilezik, external gear teeth, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

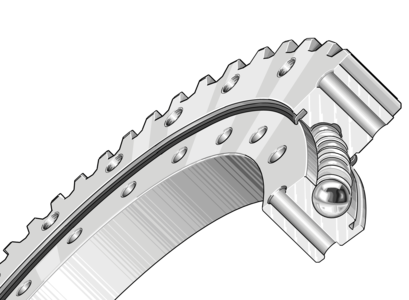

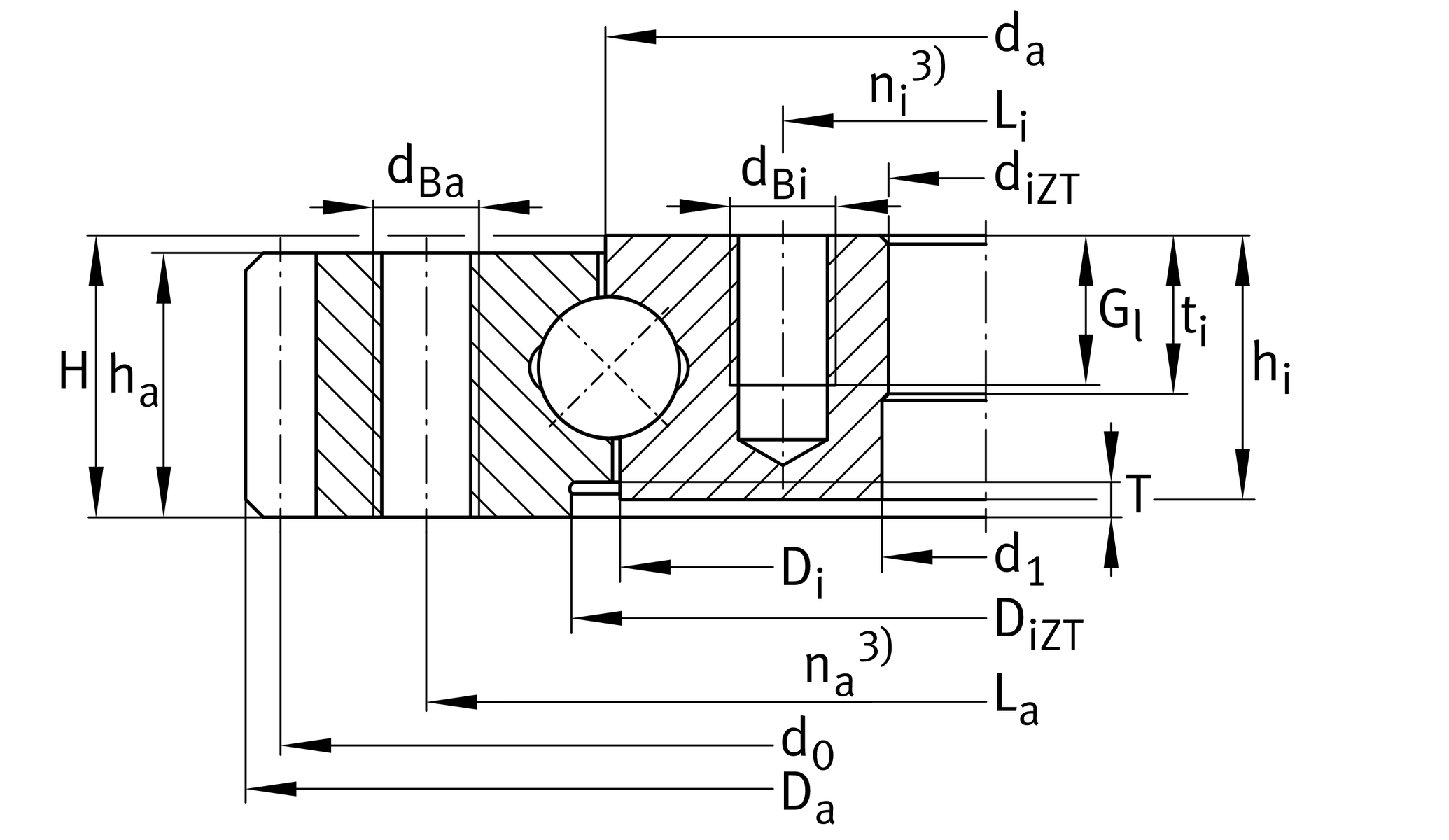

VA160302-N Slewing Bilezik, 4 point contact beaBilezik, external gear teeth Teknik Özellikleri Tablosu Özellik Değer Ağırlık 13.7 kg Dinamik Yük Sayısı (Eksenel) (C) 136000 N Dinamik Yük Sayısı (Radyal) (C) 123000 N Statik Yük Sayısı (Radyal) (C) 270000 N Statik Yük Sayısı (Eksenel) (C) 590000 N Bore Diameter (d) 240 mm Bore diameter lower tolerance -0.5 mm Bore diameter upper tolerance 0.5 mm Diameter centring outer ring (D) 310 mm Diameter centring inner ring (d) 238 mm Diameter centring inner ring lower tolerance -0.07 mm Diameter centring inner ring upper tolerance 0 mm Diameter centring outer ring lower tolerance -0.08 mm Diameter centring outer ring upper tolerance 0 mm Yükseklik (H) 32 mm Height of individual ring (h) 30 mm Length centering inner ring (t) 18 mm Length centering outer ring (T) 3 mm Max. tooth force against tooth fracture (at a shock factor of 1,35) (F) 16100 N Max. tooth force root fatigue strenght (at a shock factor of 1,2) (F) 11000 N Normal axial clearance max. 0.26 mm Normal radial clearance max. 0.16 mm Max. radial load fixing screws (friction locking) (F) 82600 N Normal axial clearance min. 0.07 mm Normal radial clearance min. 0.04 mm Modul of gearing (m) 4 mm Number of teeth (z) 94 Outside diameter inner ring (d) 302.3 mm Outside Diameter (D) 384 mm Pitch circle diameter gearing (d) 376 mm Pitchcircle diameter fixing holes inner ring (L) 262 mm Pitchcircle diameter fixing holes outer ring (L) 343 mm Number of fixing holes in inner ring (n) 20 Number of fixing holes in outer ring (n) 20 Maksimum Çalışma Sıcaklığı (T) 80 °C Minimum Çalışma Sıcaklığı (T) -25 °C Thread depth oil connector (G) 18 mm Tread fixing bore (d) M12 Width gearing (b) 30 mm Width outer ring (h) 30 mm
