Açıklama

SX011836-A Teknik Özellikleri

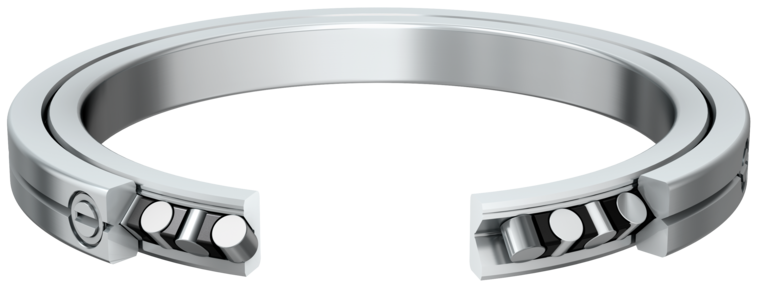

Orijinal Schaeffler (FAG/INA) üretimi SX011836-A kodlu Crossed roller beaBilezik, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

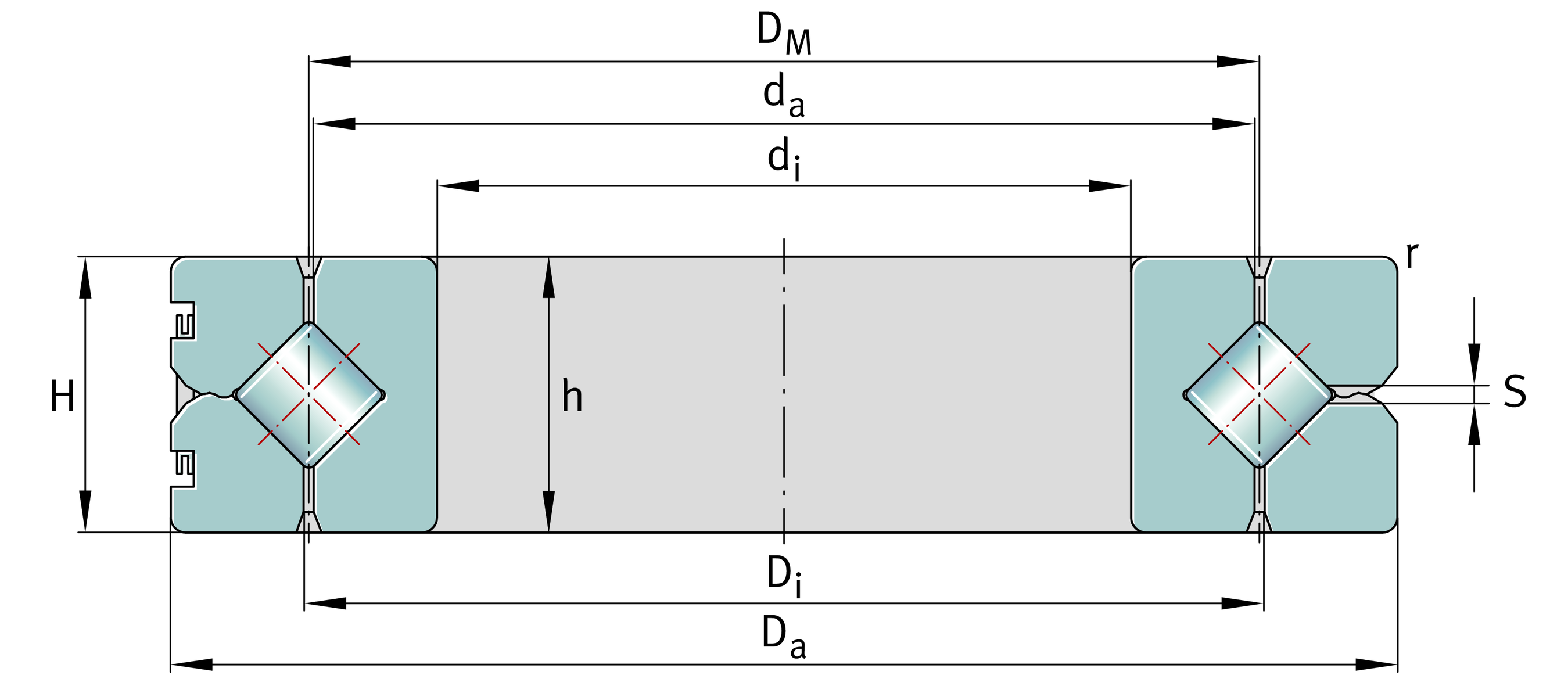

SX011836-A Crossed roller beaBilezik Teknik Özellikleri Tablosu Özellik Değer Ağırlık 2.22 kg Running accuracy, axial 0.01 mm Dinamik Yük Sayısı (Eksenel) (C) 98000 N Dinamik Yük Sayısı (Radyal) (C) 70000 N Statik Yük Sayısı (Radyal) (C) 177000 N Statik Yük Sayısı (Eksenel) (C) 360000 N Dimensions identical to ISO dimension series 18 61836 Bore Diameter (d) 180 mm Inner diameter outer ring (D) 202.8 mm Bore diameter lower tolerance -0.021 mm Bore diameter upper tolerance 0.004 mm Rolling element pitch circle diameter (D) 202 mm Diameter of lubrication hole (S) 2 mm Yükseklik (H) 22 mm Height inner ring (h) 22 mm Height of individual ring (h) 22 mm Height of individual ring lower tolerance -0.025 mm Height of individual ring upper tolerance 0 mm Limiting speed for grease lubrication with normal clearance (N) 375 1/min Limiting speed for oil lubrication with normal clearance (N) 755 1/min Outer diameter inner ring (d) 201.2 mm Maximum axial tilting clearance, at standard bearing clearance (S) 0.05 mm Maximum radial bearing clearance, at standard bearing clearance (S) 0.025 mm Low clearance: Preload (RLO) 0.01 mm Low clearance: Radial clearance (RLO) 0.005 mm Minimum axial tilting clearance, at standard bearing clearance (S) 0.01 mm Minimum radial bearing clearance, at standard bearing clearance (S) 0.005 mm Minimum Pah Boyutu (r) 1.1 mm Outside Diameter (D) 225 mm Outside diameter lower tolerance -0.029 mm Outside diameter upper tolerance 0 mm Running accuracy, radial 0.015 mm Maksimum Çalışma Sıcaklığı (T) 80 °C Minimum Çalışma Sıcaklığı (T) -30 °C Width lower tolerance -0.1 mm Width upper tolerance 0.1 mm
