Açıklama

AXW30 Teknik Özellikleri

Orijinal Schaeffler (FAG/INA) üretimi AXW30 kodlu Eksenel İğne Makaralı Rulman, endüstriyel uygulamalarda güvenilir performans ve uzun ömür sunar. Teknik detaylar ve ölçüler aşağıdaki tabloda yer almaktadır.

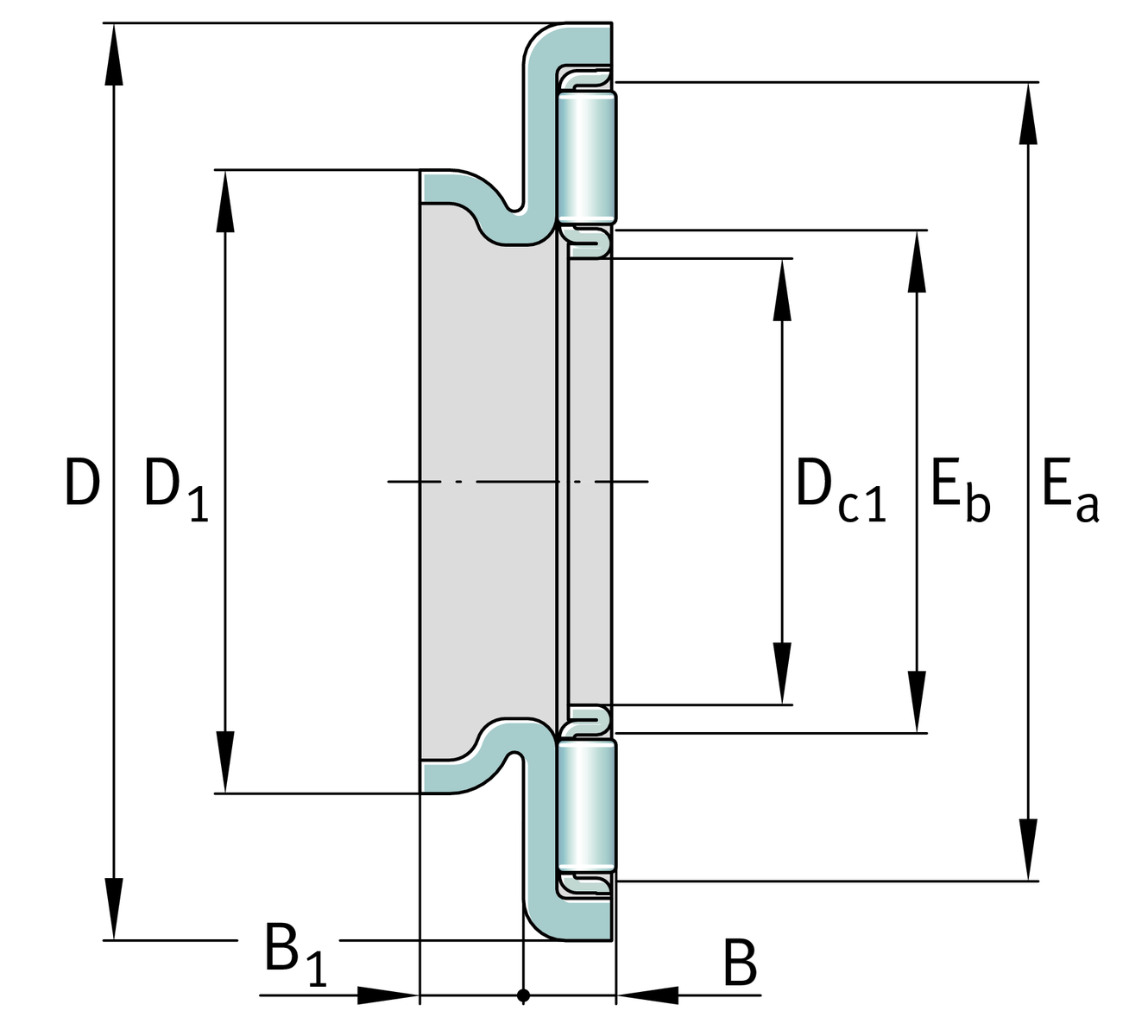

AXW30 Eksenel İğne Makaralı Rulman Teknik Özellikleri Tablosu Özellik Değer Ağırlık 23.41 g Axial bearing washer AS3047 Dinamik Yük Sayısı (Eksenel) (C) 16400 N Statik Yük Sayısı (Eksenel) (C) 70000 N Bore diameter cage (D) 30 mm Drawn cup needle roller bearings HK3016 Drawn cup needle roller bearings HK3020 Drawn cup needle roller bearings HK3026 Drawn cup needle roller bearings HK3038-ZW Drawn cup needle roller bearings for radial bearing arrangement HK3012 Drawn cup needle roller bearings turned HK3018-RS Fatigue load limit, axial (c) 7200 N Height bearing (B) 3.2 mm Height centering collar (B) 4 mm Limit Hız (n) 7500 1/min Needle bush BK3012 Needle bush BK3016 Needle bush BK3020 Needle bush BK3026 Needle bush BK3038-ZW Needle roller bearings with inner ring NA4904 Needle roller bearings with inner ring NA6904 Needle roller bearings with out inner ring NK28/20 Needle roller bearings with out inner ring NK28/30 Needle roller bearings with out inner ring NKS24 Needle roller bearings with out inner ring RNA4904 Needle roller bearings with out inner ring RNA6904 Outside diameter bearing washer (D) 50 mm Outside diameter centering collar (D) 37 mm Raceway dimension (E) 46 mm Raceway dimension (E) 34 mm Referans Hızı (n) 3800 1/min
