Açıklama
SKF S7201 ACDGA/HCP4A, süper hassasiyetli eğik bilyalı rulmanlar kategorisinde üstün performans sunar. 12mm iç çap, 32mm dış çap, 10mm genişlik ölçülerindeki bu ürün, orijinal SKF kalitesiyle sanayi standartlarını karşılar.

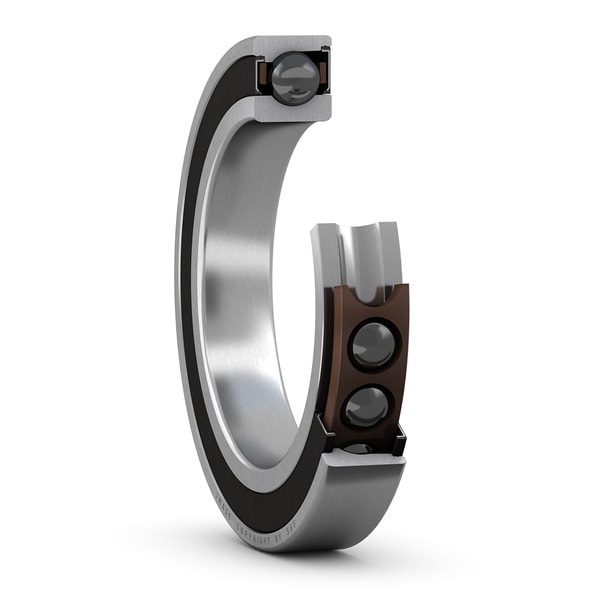

These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
Özellikler ve Faydalar
- ✔ Very high running accuracy
- ✔ Very high load carrying capacity
- ✔ Universally matchable
- ✔ Non-contact seals
- ✔ Integral sealing prolongs bearing service life
Teknik Veriler
| Marka | SKF |
|---|---|
| Model | S7201 ACDGA/HCP4A |
| Delik Çapı (d) | 12.0000 mm |
| Dış Çap (D) | 32.0000 mm |
| Genişlik (B) | 10.0000 mm |
| Dinamik Yük (C) | 5.7200 kN |
| Statik Yük (C0) | 2.4500 kN |
| Ağırlık | 0.0340 kg |
