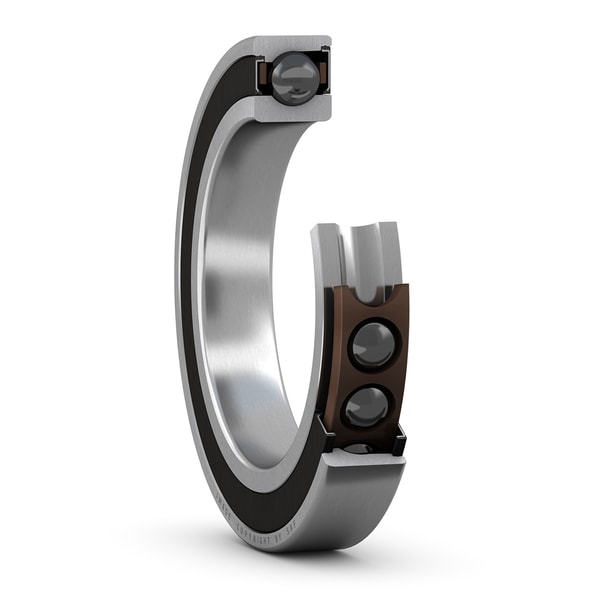

SKF S71920 ACDGA/HCP4A, süper hassasiyetli eğik bilyalı rulmanlar kategorisinde üstün performans sunar. 100mm iç çap, 140mm dış çap, 20mm genişlik ölçülerindeki bu ürün, orijinal SKF kalitesiyle sanayi standartlarını karşılar.
These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
Özellikler ve Faydalar
- ✔ Very high running accuracy
- ✔ Very high load carrying capacity
- ✔ Universally matchable
- ✔ Non-contact seals
- ✔ Integral sealing prolongs bearing service life
Teknik Veriler
| Marka | SKF |
|---|---|
| Model | S71920 ACDGA/HCP4A |
| Delik Çapı (d) | 100.0000 mm |
| Dış Çap (D) | 140.0000 mm |
| Genişlik (B) | 20.0000 mm |
| Dinamik Yük (C) | 57.2000 kN |
| Statik Yük (C0) | 63.0000 kN |
| Yorulma Yük Limiti (Pu) | 1.7600 kN |
| Ağırlık | 0.6780 kg |
