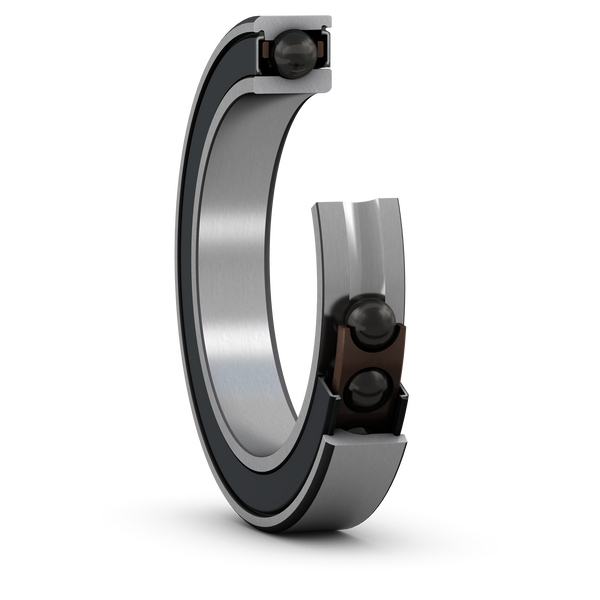

SKF S71908 ACE/HCP4A, süper hassasiyetli eğik bilyalı rulmanlar kategorisinde üstün performans sunar. 40mm iç çap, 62mm dış çap, 12mm genişlik ölçülerindeki bu ürün, orijinal SKF kalitesiyle sanayi standartlarını karşılar.
These super-precision, high-speed E design, single row angular contact ball bearings, with 25° contact angle, with seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate very high speeds. Compared to the equivalent SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads.
Özellikler ve Faydalar
- ✔ Very high running accuracy
- ✔ Accommodate very high speeds
- ✔ Accommodate relatively high radial loads and large unilateral axial loads
- ✔ Non-contact seals
- ✔ Integral sealing prolongs bearing service life
Teknik Veriler
| Marka | SKF |
|---|---|
| Model | S71908 ACE/HCP4A |
| Delik Çapı (d) | 40.0000 mm |
| Dış Çap (D) | 62.0000 mm |
| Genişlik (B) | 12.0000 mm |
| Dinamik Yük (C) | 9.3600 kN |
| Statik Yük (C0) | 5.7000 kN |
| Yorulma Yük Limiti (Pu) | 0.1760 kN |
| Ağırlık | 0.0980 kg |
