SKF S7018 ACDGB/P4A, süper hassasiyetli eğik bilyalı rulmanlar kategorisinde üstün performans sunar. 90mm iç çap, 140mm dış çap, 24mm genişlik ölçülerindeki bu ürün, orijinal SKF kalitesiyle sanayi standartlarını karşılar.

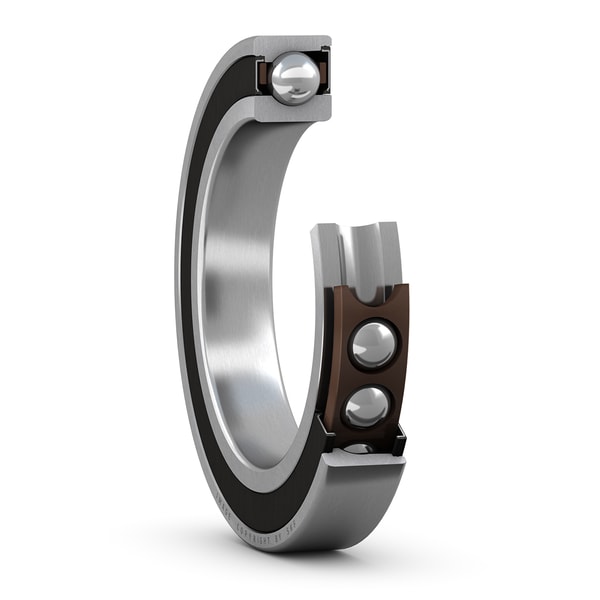

These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
Özellikler ve Faydalar
- ✔ Very high running accuracy
- ✔ Very high load carrying capacity
- ✔ Universally matchable
- ✔ Non-contact seals
- ✔ Integral sealing prolongs bearing service life
Teknik Veriler
| Marka | SKF |
|---|---|
| Model | S7018 ACDGB/P4A |
| Delik Çapı (d) | 90.0000 mm |
| Dış Çap (D) | 140.0000 mm |
| Genişlik (B) | 24.0000 mm |
| Dinamik Yük (C) | 74.1000 kN |
| Statik Yük (C0) | 72.0000 kN |
| Yorulma Yük Limiti (Pu) | 2.8500 kN |
| Ağırlık | 1.1600 kg |
