SKF 331640 A, konik makaralı rulmanlar kategorisinde üstün performans sunar. 558.8mm iç çap, 736.6mm dış çap, 0mm genişlik ölçülerindeki bu ürün, orijinal SKF kalitesiyle sanayi standartlarını karşılar.

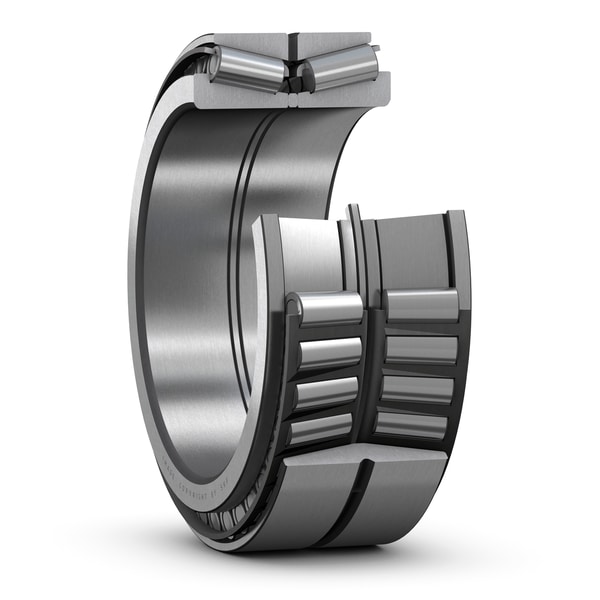

SKF double row tapered roller bearings are ready-to-mount units, manufactured with a predetermined axial clearance or preload. TDO design bearings have a double row outer ring and two single inner rings that usually have an intermediate ring between them. Their roller sets are arranged back-to-back (O-arrangement), which enables them to accommodate tilting moments.
Özellikler ve Faydalar
- ✔ High radial load carrying capacity
- ✔ Accommodate axial loads in both directions
- ✔ Relatively high stiffness
- ✔ Accommodate tilting moments
- ✔ Many variants, including a helical groove in the bore or lubrication grooves in the side faces of the bearing rings
Teknik Veriler
| Marka | SKF |
|---|---|
| Model | 331640 A |
| Delik Çapı (d) | 558.8000 mm |
| Dış Çap (D) | 736.6000 mm |
| Dinamik Yük (C) | 4290.0000 kN |
| Statik Yük (C0) | 11600.0000 kN |
| Yorulma Yük Limiti (Pu) | 815.0000 kN |
| Ağırlık | 243.0000 kg |
