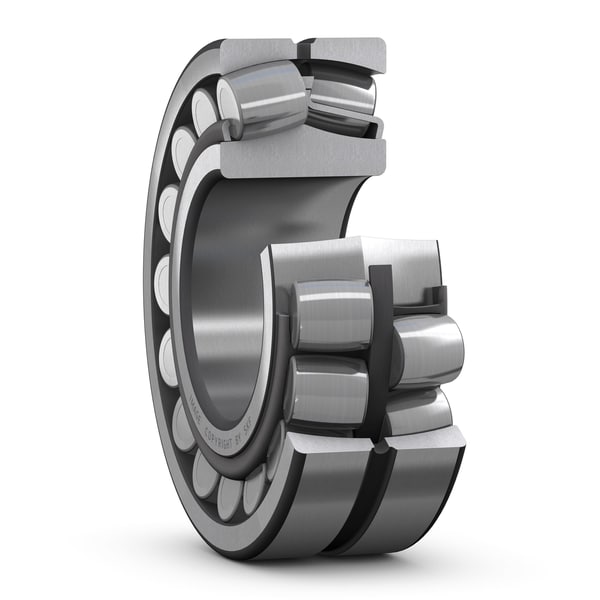

SKF 22218/C4W33VA9A1, küresel makaralı rulmanlar kategorisinde üstün performans sunar. 90mm iç çap, 160mm dış çap, 40mm genişlik ölçülerindeki bu ürün, orijinal SKF kalitesiyle sanayi standartlarını karşılar.
Spherical roller bearings with designation suffix VA9A1 are specifically designed for demanding low-speed applications. The internal design enables additional lubricant, improved lubrication flow and includes features to facilitate relubrication. These bearings are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature.
Özellikler ve Faydalar
- ✔ Designed for low-speed applications and horizontal shaft position
- ✔ Accommodate misalignment
- ✔ Optimized design with improved lubrication and low friction, long service life
- ✔ Increased wear resistance, reduced maintenance
- ✔ Fully interchangeable with standard spherical roller bearings
Teknik Veriler
| Marka | SKF |
|---|---|
| Model | 22218/C4W33VA9A1 |
| Delik Çapı (d) | 90.0000 mm |
| Dış Çap (D) | 160.0000 mm |
| Genişlik (B) | 40.0000 mm |
| Dinamik Yük (C) | 271.0000 kN |
| Statik Yük (C0) | 360.0000 kN |
| Limit Hız | 530 r/min |
| Ağırlık | 3.3500 kg |
